| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| Anliker GSM 5 Star | Vegetable Cutter - 900 lbs/hr | 9.84" | 12.40" | 21.26" | 56.22 |
Standard Features
- Kidney shaped material pusher is made from antimicrobial glass fiber compound
- Cutting head is dishwasher safe
- Powerful 1/2 HP gear-driven motor
- Optimum plate speed of 336 RPMs
- Cast stainless steel construction & sealed upper housing
- Double safety interlock - hopper head and food pusher
- Ergonomic 45° food hopper incline
- Removable hopper head and food pusher (no tools required)
- Discs are antimicrobial durable composite fiberglass & dishwasher safe
- Stainless steel knives are hardened, ground, leathered and hand-polished
- 52 discs are available
Capacity
Processes up to 600 lbs. per hour. Ideal for up to 300-400 meals.
Motor
1/2 HP, 115V-60HZ-1 Phase, 3 amps, automatic reset thermal overload protection.
On/Off Latch (interlocks)
The hopper latch serves as the on/off switch and interlock for the hopper head. The unit will not operate with the hopper head open or unlatched.
Gear Drive
Sealed planetary gear transmission with permanent grease lubrication. Output 336 RPMs.
Unit Comparisons
| GSM 4 | GSM 5 Star | XL, XL Star, & MultiCut-240 | |
|---|---|---|---|
| HP | 1/2 | 1/2 | 1 |
| RPMs | 340 | 340 | 280 |
| Upper Housing | Cast Aluminum | Stainless Steel | Cast Aluminum |
| Blades Available | 47 | 52 | 42,44,42 |
| Antimicrobial Protection Pusher | X | X | |
| Antimicrobial Protection Blades | X | X |
Cord and Plug
Attached six-foot flexible 3-wire cord and plug fits a grounded receptacle.
Construction
The housing, removable hinged hopper head, food hoppers, removable food pusher and ejector plate are made of polished cast stainless steel.
Cutting Discs: There are 52 cutting discs available. The discs are antimicrobial durable composite fiberglass. The knives are hardened, ground, leathered and hand-polished to a razor sharp edge for precision cutting and long life.
Design
Ergonomic 45° incline for convenient feeding, cutting and ejection of food. Separate food hopper permits continuous cutting of long products. The food pusher enables even pressure to be applied when cutting food. The hopper head, food pusher and cutting discs are easily removable, without the use of tools, for quick cleaning
Warranty
Two years parts and labor.

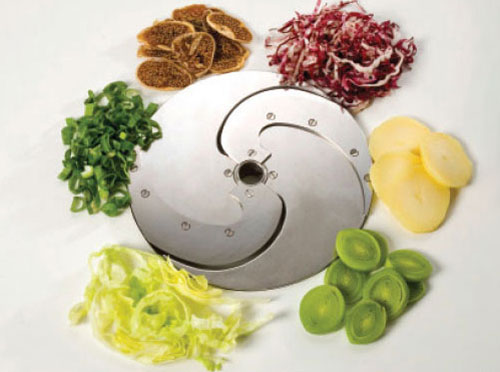

Anliker GSM-5 - Sickle Blades
| SM1.5-5 | Sickle Disc 1/16" (1.5mm) |
|---|---|
| SM2.5-5 | Sickle Disc 3/32" (2.5mm) |
| SM3.5-5 | Sickle Disc 9/9"4 (3.5mm) |
| SM4.5-5 | Sickle Disc 11/64" (4.5mm) |
| SM5.5-5 | Sickle Disc 7/32" (5.5mm) |
| SM6.5-5 | Sickle Disc 1/4" (6.5mm) |

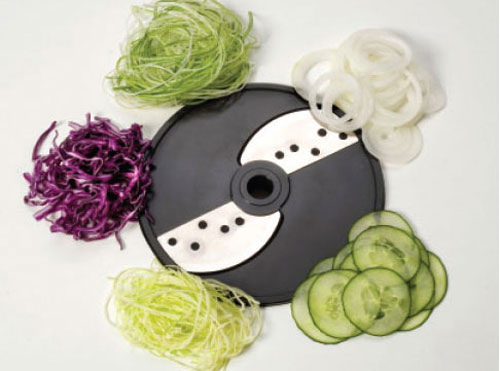

Anliker GSM-5 - Fine Cut (F)
| F1-5 | Slicing Disc 1/32" (1mm) |
|---|---|
| F2-5 | Slicing Disc 5/64" (2mm) |
Anliker GSM-5 - Course Cut (G)
| G10-5 | Slicing Disc 3/8" (10mm) |
|---|---|
| G12-5 | Slicing Disc 15/32" (12mm) |
| G3-5 | Slicing Disc 1/8" (3mm) |
| G4-5 | Slicing Disc 5/32" (4mm) |
| G6-5 | Slicing Disc 15/64" (6mm) |
| G8-5 | Slicing Disc 5/16" (8mm) |
Anliker GSM-5 - Tomato Slicer (TO)
| TO-5 | Slicing Disc 3/16" (5mm) |
|---|
Anliker GSM-5 - Juliennes (S)
| PA4K-5 | Julienne Disc 5/32" (4mm) |
|---|---|
| S1.5-5 | Julienne Disc 1/16" (1.5mm) |
| S2-5 | Julienne Disc 5/64" (2mm) SQUARE |
| S3-5 | Julienne Disc 1/8" X 5/64" (3mm) |

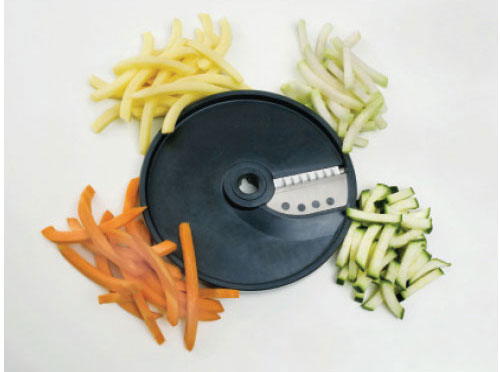

Anliker GSM-5 - French Fries (BT)
| BT10-5 | French Fry Disc 3/8" (10mm) |
|---|---|
| BT6-5 | French Fry Disc 15/64" (6mm) |
| BT7-5 | French Fry Disc 9/32" (7mm) |
| BT8-5 | French Fry Disc 5/16" (8mm) |
Anliker GSM-5 - Wave Cut
| SU5-5 | Slicing Disc 3/16” (5mm) |
|---|---|
| SU7-5 | Slicing Disc 9/32" (7mm) Wavy Cut |
Anliker GSM-5 - Cubes (W)
| W10-5 | Dicing Disc 3/8” |
|---|---|
| W14-5 | Dicing Disc 9/16” |
| W20-5 | Dicing Disc Soft Products Only 25/64” x 25/64” x 25/64” |
| W6-5 | Dicing Disc 1/4” x 1/4” x 5/16” |
| W8-5 | Dicing Disc 5/16” |

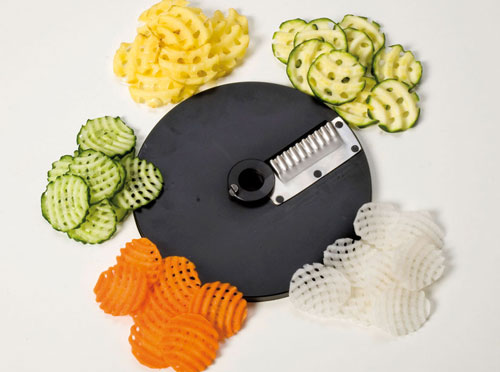

Anliker GSM-5 - Waffles (PG)
| PG4-5 | Gaufrette Disc 5/32" (4mm) |
|---|---|
| PG6-5 | Gaufrette Disc 15/14" (6mm) |
Anliker GSM-5 - Vegetable spaghetti cutter (SP)
Anliker GSM-5 - Curly Cut
Anliker GSM-5 - Brunoise Discs (BR)
| BR4-5 | Brunoise Disc 5/32” (4mm) |
|---|---|
| BR5-5 | Brunoise Disc 7/32” (5mm) |

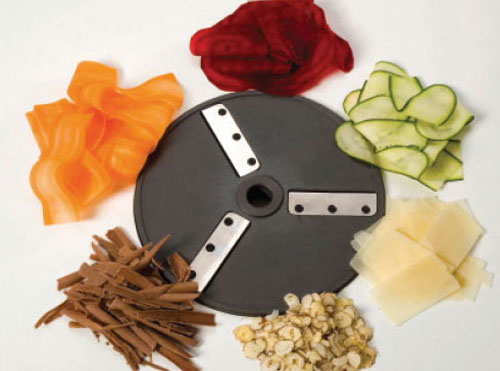

Anliker GSM-5 - Shaving Discs (HS)
| HS-5 | Shaving Disc 1/64" (.5mm) |
|---|
Anliker GSM-5 - Shredding Discs (RS)
| 0-5 | Shredding Disc 23/64"(9mm) |
|---|---|
| 00-5 | Shredding Disc 7/16"(11mm) |
| 1-5 | Shredding Disc 9/32"(7mm) |
| 11-5 | Shredding Disc 5/64" (2mm) |
| 23-5 | Specialty Shredding Disc 3/32" |
| 3-5 | Shredding Disc 3/16"(5mm) |
| 4-5 | Shredding Disc 5/32"4mm) |
| 7-5 | Shredding Disc 1/8"(3mm) |
| 9-5 | Shredding Disc 3/32"(2.5mm) |
File Downloads
| File | Description | Size | |
|---|---|---|---|
| T-2.PDF | SPEC: Anliker GSM 5 Star Vegetable Cutter | N/A | |
| Diamond Sharp Resharpening 2022.pdf | Anliker Blade Resharpening Price List |
644.3 KB | |
| GSM_5-STAR_web.pdf | Anliker GSM 5-Star Mini Catalog |
1.04 MB | |
